Mixel, l'art du mélange The art of mixing

Agitator - AGIPRO



Practical and economic agitator

AGIPRO quote online

The Purposes

Standard agitator for All liquid mixtures: tank volume from 0.5 m³ to 8 m³ and viscosity from 1 to 4000 cpo.

WATER TREATMENT Conditioning in tanks Reagent preparation (polymers, lime milk…) Coagulation
INDUSTRIAL EFFLUENT TREATMENT Neutralisation, Ajustement de Ph, NeutralizationPh adjustmentUrea preparation
PAINT, COATING Paint preparation Aqueous Phase
PAPER INDUSTRY Varnish preparation (starch dyes)
OTHER INDUSTRIES¨ FOOD PROCESSING¨ CHEMISTRY¨ COSMETICS¨… All products must be placed in suspension prior to injection in the process

CLIC HEREAND GET AGIPRO STANDAR AGITATOR BOOKLET

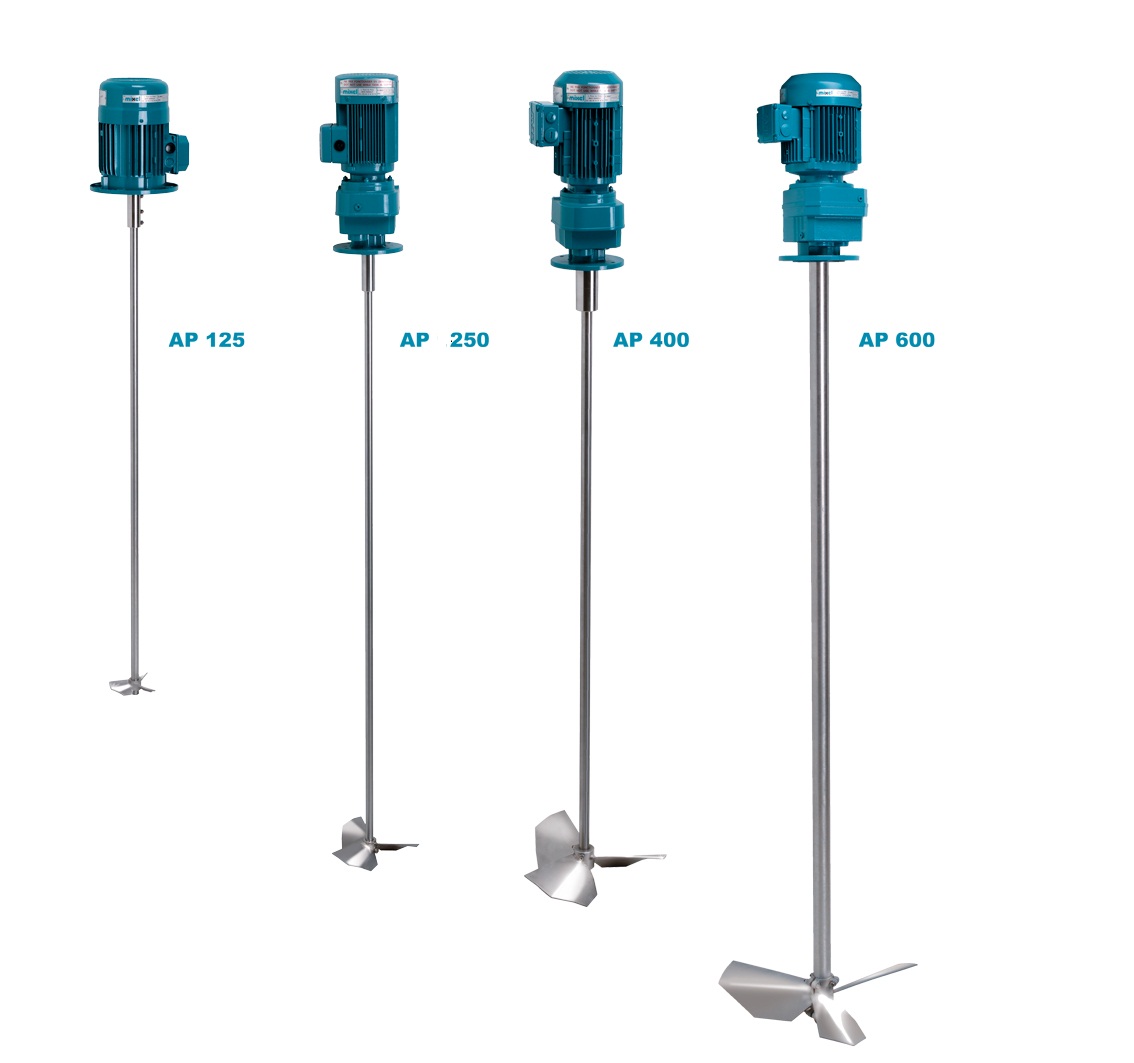

The Range

4Multi-purpose4Optimum efficiency4Easy to handle 4Four sizes4Stainless Steel4Delivery in less than 2 weeks

TYPE

Tank volume m³

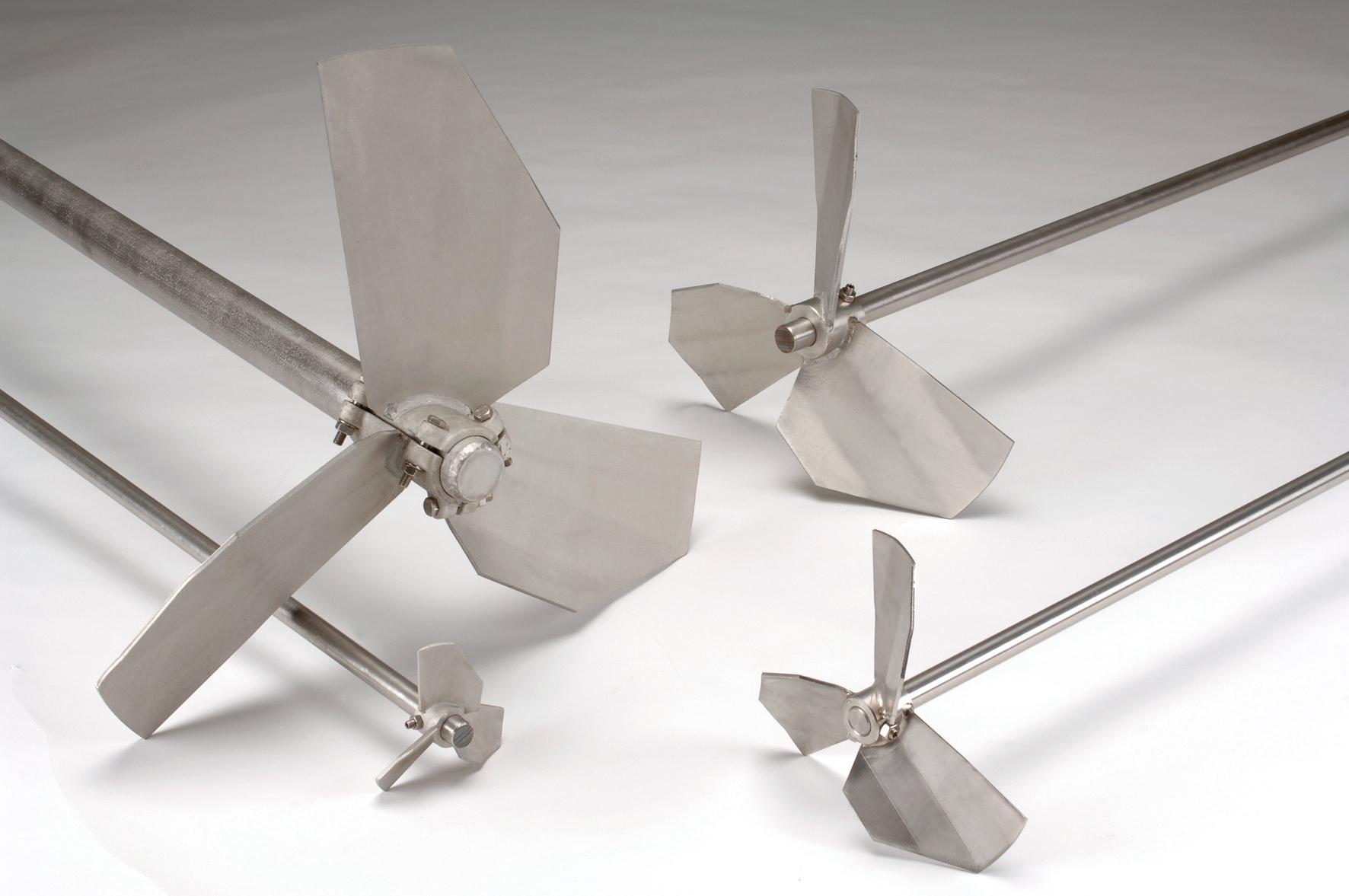

PropellerÆ hélice mm

Propeller Type

Rotation speed rpm

Flow velocity m/s

Pumping flow m³/h

Absorbed power Kw

Installed power Kw

Shaft length mm

Weight Kg

Square flange mm

AP125

0.5 à 1.5

125

TT

1425

3.57

158

0.388

0.75

1200

15

250 x 250

AP250

1.5 à 3

250

TT

280

1.43

252

0.1

0.37

1500

20

AP400

3 à 5

400

TT

145

1.18

535

0.145

0.55

1500

30

AP600

5 à 8

600

TTP

138

1.14

1163

0.378

1.1

2000

60

400 x 400

The Accessories

Four accessories are available for AGIPRO standard agitator. These accessories are chosen regarding final use and size of agitator.

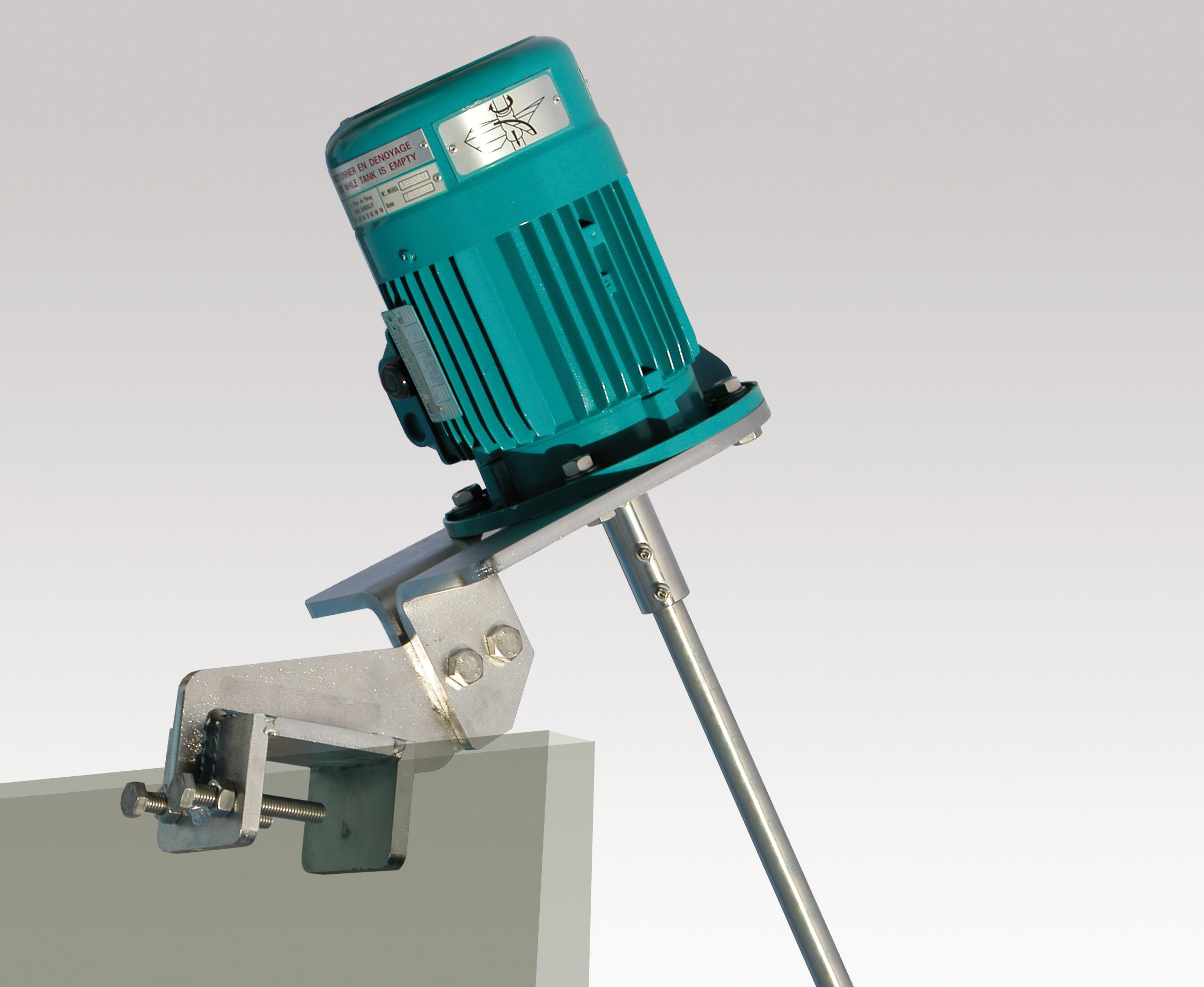

  • pince

    stainless steel clamp for fastening on tank edge (only for AP 125, AP 250 and AP 400 ).

  • embase

    stainless steel flange for fastening on tank roof

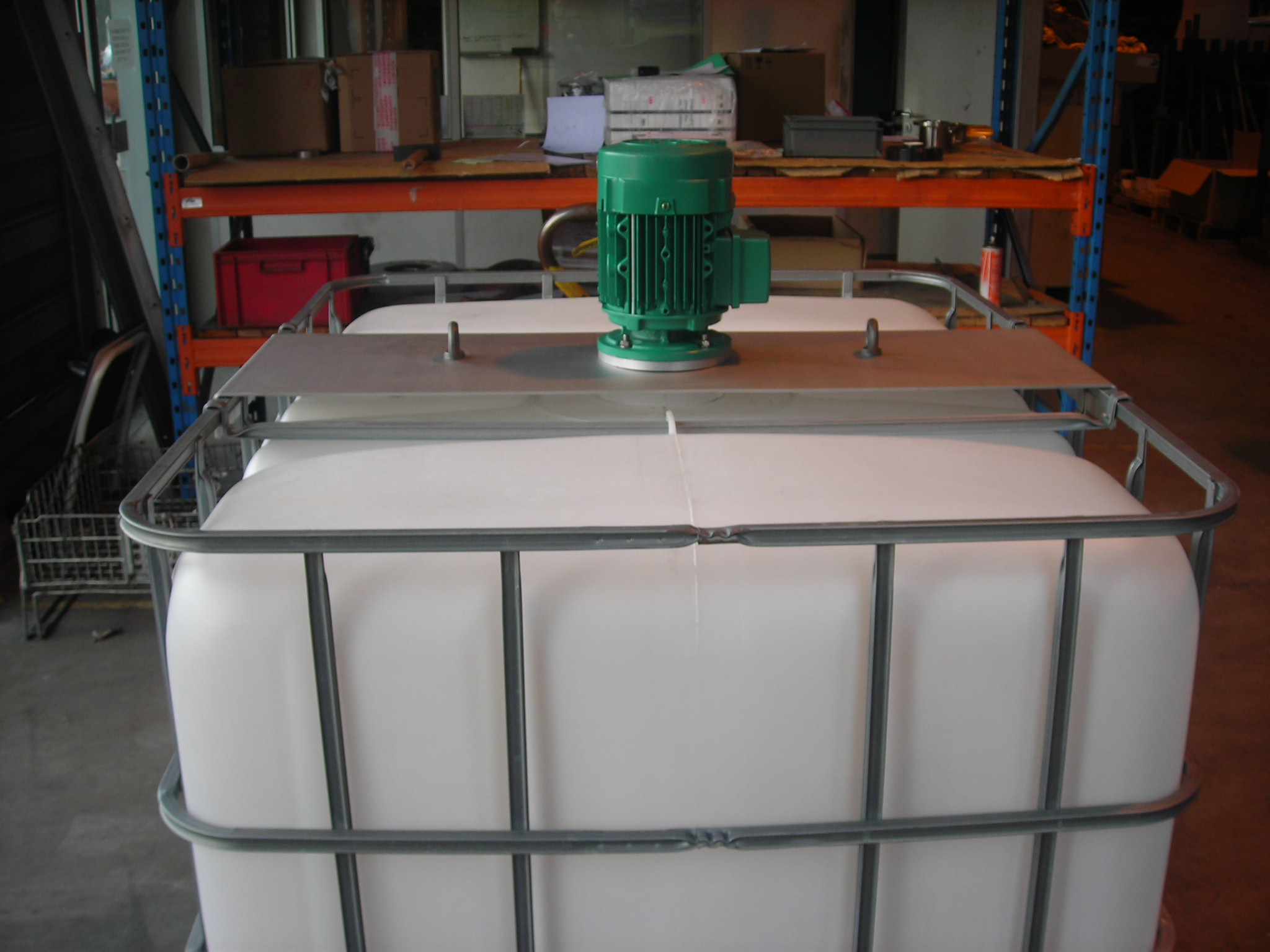

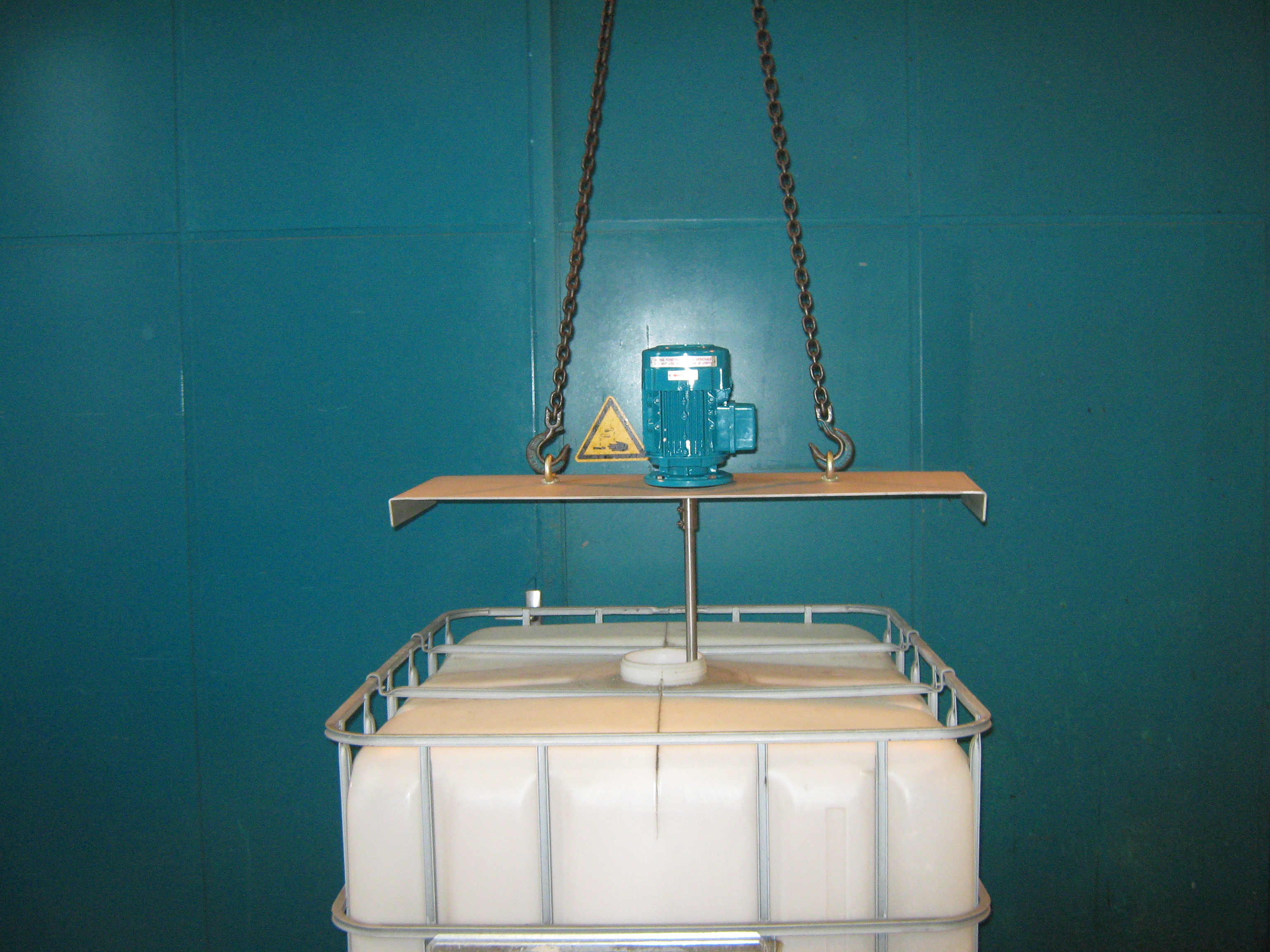

  • trav

    special galvanised steel holder for 1000 litres container

  • turbine

    4 blade turbine

The performances

Choose the right standard agitator AGIPRO, regarding volume of the tank (from 0.5 to 8 m³) to be equipped and viscosity (from 1 to 4000 cps) of the product to be blended.



Find the best agitator according to:

Your branch of industry

Validate

Your need

Validate

Our agitators

Validate
