Mixel, l'art du mélange The art of mixing

Agitator - AGIMAG



Magnetically driven agitator

Performances

  • Absolute tightness
  • Perfect cleanability
  • Sanitary safety*
  • Sterilization and cleaning in place**

*FDA certified materials – USP 6 class **AGIMAG range is compliant with EHEDG cleanability criteria . Upload DRAWING

Agitation purpose and applications

  • Light chemicals
  • Pharmaceuticals
  • Food processing
  • Cosmetics
  • Blending
  • Dispersion
  • Dissolution
  • Heat transfer

Manufacture of vaccines, lotions, liquid creams, gastric dressing, eyewash, syrups, injectable medicine, filming varnish, Storage of milk, liquid yoghurt, fruit juices with or without pulp, alcohol Fermentation and extraction of aromas

The guiding bearings

MIXEL offers 3 sorts of guiding bearings, to be chosen according to their special performances:

  • AGIMAG palier carbure

    Silicon carbide bearing – without freeing silica particless

  • AGIMAG palier zirconium

    Zirconium bearing – extremely resistant

  • AGIMAG palier composite FDA

    FDA composite material bearing dry functioning – unbreakable

AGIMAG, magnetically driven agitator – The Range

The range of magnetically driven Agitators AGIMAG includes : R SERIES, high speed agitators, L SERIES, low speed agitators, S SERIES, special series. Those agitators are designed for blending volumes from 20 to 40 000 litres, depending on the viscosity of the product (viscosity is generally similar to viscosity of water).Pressure up to 16 bars, temperature up to 150°C ATEX certified agitator

TYPE MOBILE Ø (mm) MOTOR POWER (kW – rpm) FREQUENCY and SPEED RANGE (Hz – rpm)

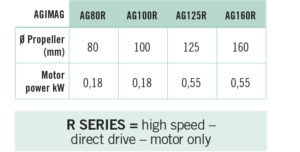

AGIMAGâ 80R 80 0,18-1500 15 – 56/400 – 1500
AGIMAGâ 100R 100 0,18-1500 15 – 37/400 – 1100
AGIMAGâ 125R 125 0,55-1000 15 – 50/300 – 1000
AGIMAGâ 160R 160 0,55-750 15 – 50/220 – 750

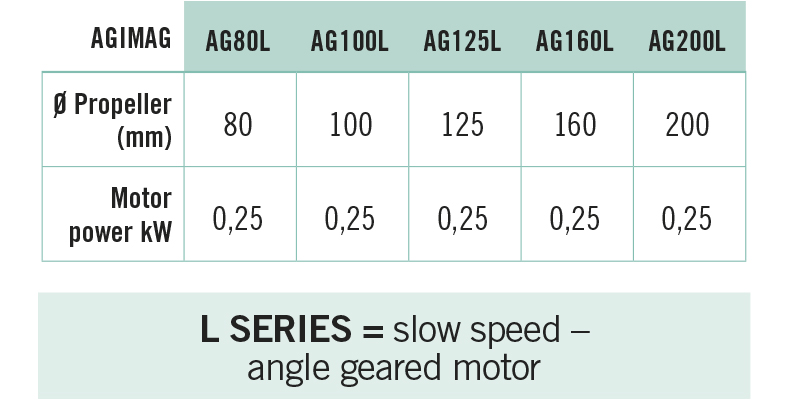

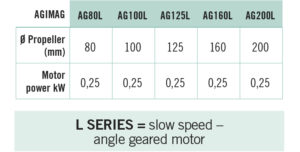

AGIMAGâ 80L 80 0,25-3000 15 – 50/170 – 560
AGIMAGâ 100L 100 0,25-3000 15 – 50/170 – 560
AGIMAGâ 125L 125 0,25-3000 15 – 50/170 – 560
AGIMAGâ 160L 160 0,25-3000 15 – 45/170 – 500
AGIMAGâ 200L 200 0,25-3000 15 – 50/120 – 400

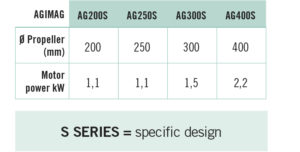

AGIMAGâ 200S 200 1,1-3000 15 – 55/150 – 550
AGIMAGâ 250S 250 1,1-1500 15 – 63/80 – 330
AGIMAGâ 300S 300 1,5-1500 15 – 57/80 – 300



AGIMAG, magnetically driven agitator – The Accessories

  • AGIMAG Turbine de dispersion

    Dispersion turbine, for R SERIES (high speed)

  • AGIMAG Canne de démontage détourée

    Dismounting tool for impeller and bearings for R SERIES et L SERIES

  • AGIMAG tachymètre

    Tachometer to measure the real rotation of the impeller

  • AGIMAG extraction assistee aimant

    Easy removal of the impeller by assisted extraction of the motor magnet, without disassembling the motorization
